Safety Barriers - ม่านแสงนิรภัย
>>
1

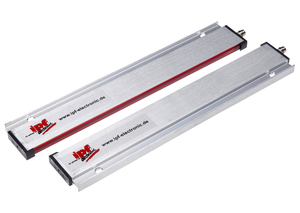

Optical sensors รุ่น OYL20470
| Article No | OYL20470 |
|---|---|
| Ambient temperature | -25 - 55°C |
| Beam spacing | 20mm |
| Body protection (> 30mm) | no |
| Cascadable | no |
| Clock control possible | no |
| Connection to an amplifier | no |
| Degree of protection (IP) | IP54 |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Fade-out possible | yes |
| Finger protection (< 14mm) | no |
| Hand protection (< 30mm) | no |
| Height of sensor | 240mm |
| Increased ambient temperature >70°C | no |
| Length of sensor | 40.75mm |
| Material cover | Plastic |
| Material housing | Aluminium |
| Material of optical surface | Plastic |
| Max. output current | 100mA |
| No-load current-receiver | 60mA |
| No-load current-transmitter | 60mA |
| Number of beams | 4 |
| Number of contact energized outputs with signalling function | 1 |
| Number of poles-receiver | 4 |
| Number of poles-transmitter | 4 |
| Operation agent-safety class | Safety class 3 |
| Override possible | no |
| Rated control supply voltage Us at DC | 10 - 30V |
| Reduced resolution | no |
| Resolution of the light curtain | 20mm |
| Reverse polarity protection | yes |
| Safety field height | 60mm |
| Scope of delivery of the one-way system | Transmitter and receiver |
| Short-circuit-proof | yes |
| Suited for safety functions | no |
| Time of reaction | 220ms |
| Transmission range of the safety field | 5m |
| Type of electric connection | Connector M8 |
| Type of switch function | Normally open/normally closed |
| Type of switching output | Relay contact |
| Voltage type | DC |
| Wavelength of the sensor | 880nm |
| Width sensor | 9mm |
| With beam coding | yes |
| With bolt mounting | no |
| With lug mounting | yes |
| With monitoring function downstream switching devices | no |
| With muting function | no |
| With restart blockage | no |
