Product Category


20
>>
>> Valve
>>
1

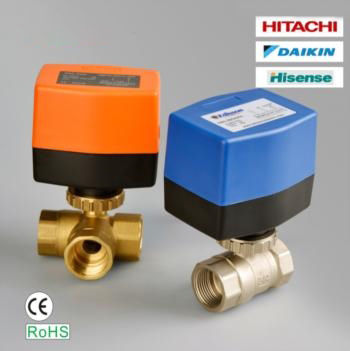

Valve รุ่น AC Motorized Ball Valve

Valve body Specification


Model No.

type

Inch

Kvs(m3/h)

Pvmax(KPa)

Ps(KPa)

W8BV215

2 way

1/2”

8.6

1000

1400

W8BV220

2 way

3/4”

21

1000

1400

W8BV225

2 way

1”

26

1000

1400

W8BV315

3 way

1/2”

8.6

1000

1400

W8BV320

3 way

3/4”

21

1000

1400

W8BV325

3 way

1”

26

1000

1400



Actuator table


Model No.

Working Voltage

type

torque

Consumption

On/off time

Valve body

WRA-6320

230VAC±15%

50/60Hz

3-piont or on/off

>4N.m

7W

50Hz:16S

60Hz:12S

W8BV215

W8BV220

W8BV225

W8BV315

W8BV320

W8BV325

WRA-6320A

On/off

WRA-6310

110VAC±15%

50/60Hz

3-piont or on/off

WRA-6310A

On/off

WRA-6302

24VAC±15%

50/60Hz

3-piont or on/off

WRA-6302A

On/off




  Wiring diagram


WRA-6320A,WRA-6310A,WRA-6302A


WRA-6320, WRA-6310,WRA-6302



ต้องการข้อมูลเพิ่มเติมกรุณาติดต่อ
